Swiss Type CNC Lathe

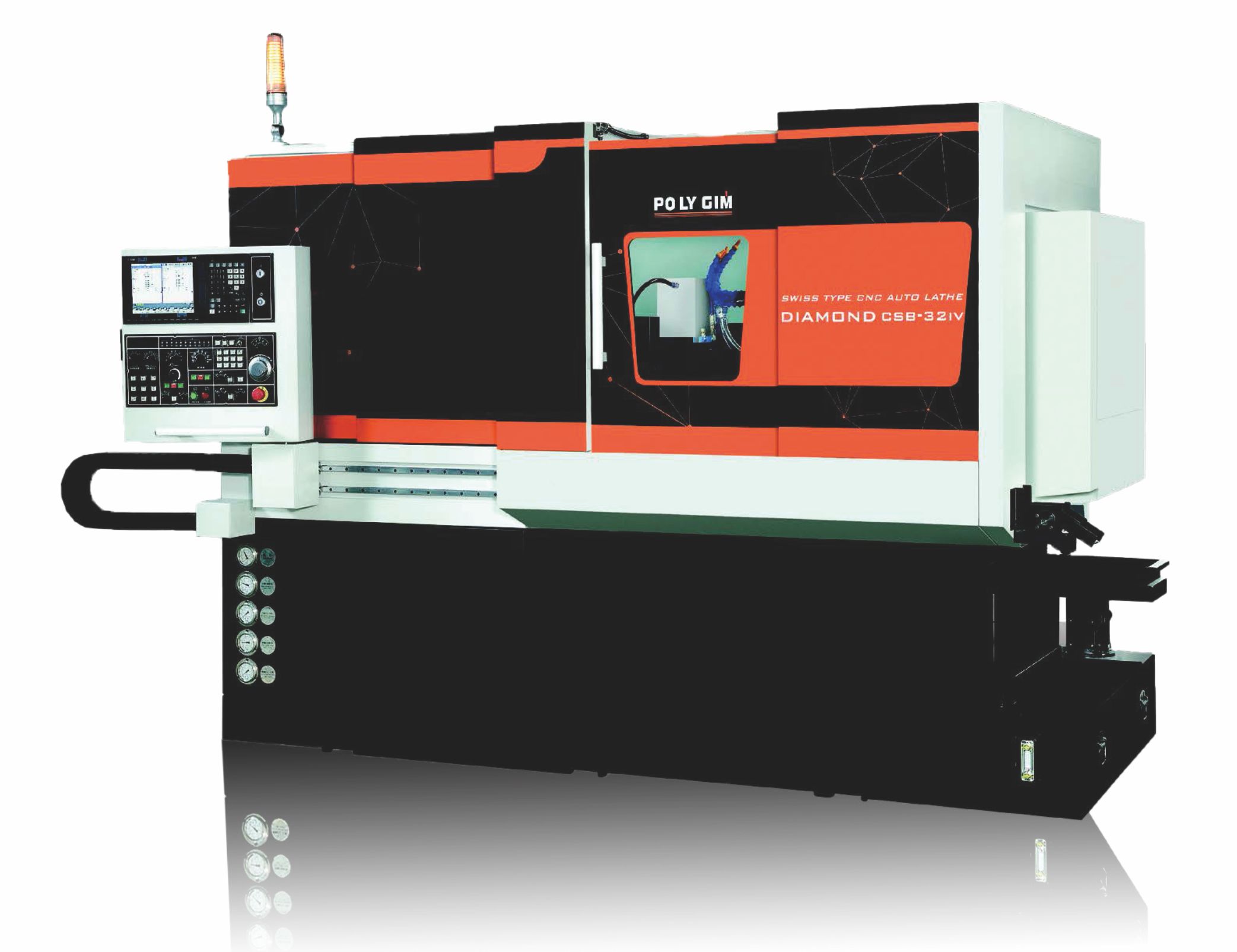

Diamond CSB-32IV/CSB-42IV

说明书文件：/uploads/soft/20260404/1-260404223322Y2.pdf

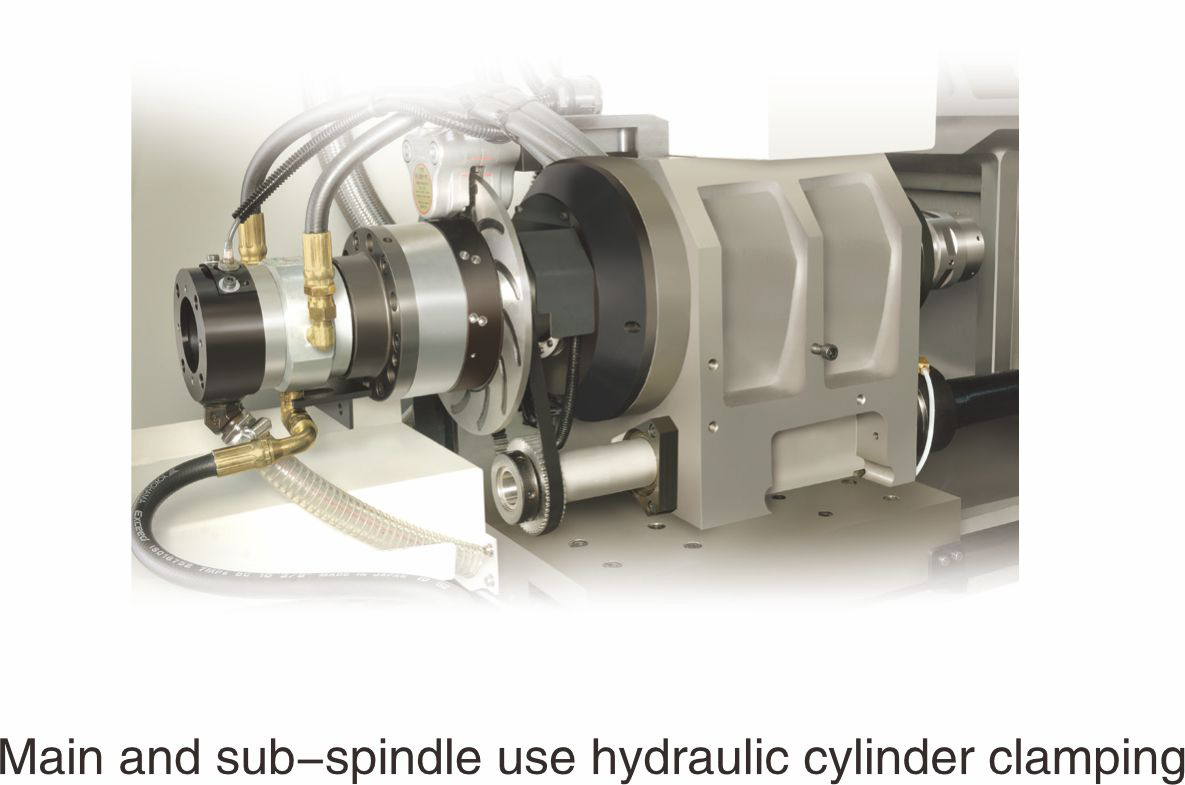

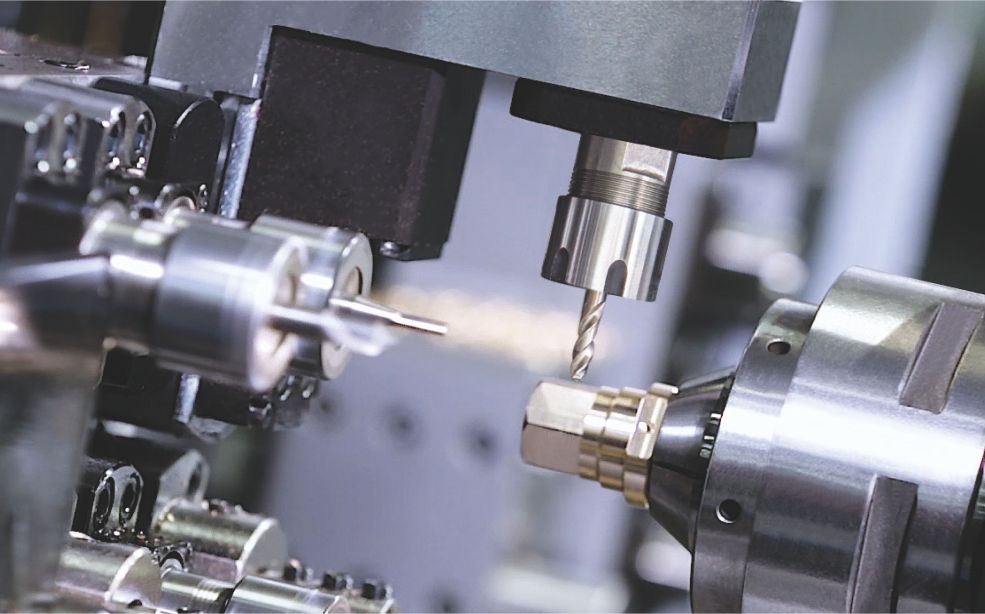

Cross travel sub-spindle: Cross travel sub-spindle design. The main and sub spindles can work either one at a time or simultaneously for reduced machining duration. This design brings multi-function front and rear machining.Short remnant material: With the optional rough material bushing, the remnant material can be 50mm (depending on the part length).Raw material machining: 0.1mm material tolerance can be achieved by using the Rough material bushing.Replaceable fixed / Driven toolholder set: The 4 pc back stationary / driven tool holder is replaced by the newly designed replaceable fixed tool holder or driven tool holder. This enables increased tooling fiexibility.

Order online 下载说明书

Introduction

Using Live Bushing with Guide Bush

Using Rough Material Bushing without Guide Bush

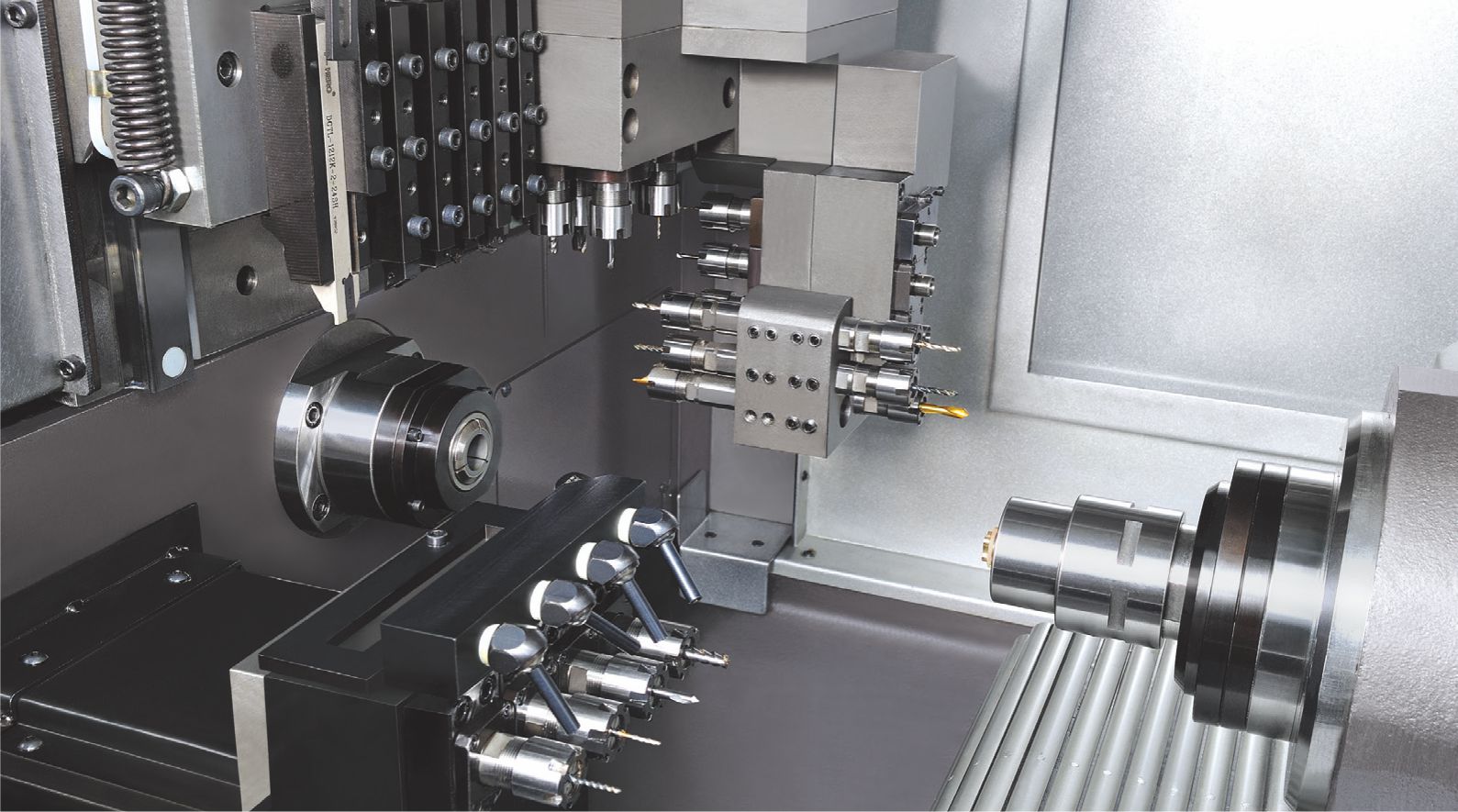

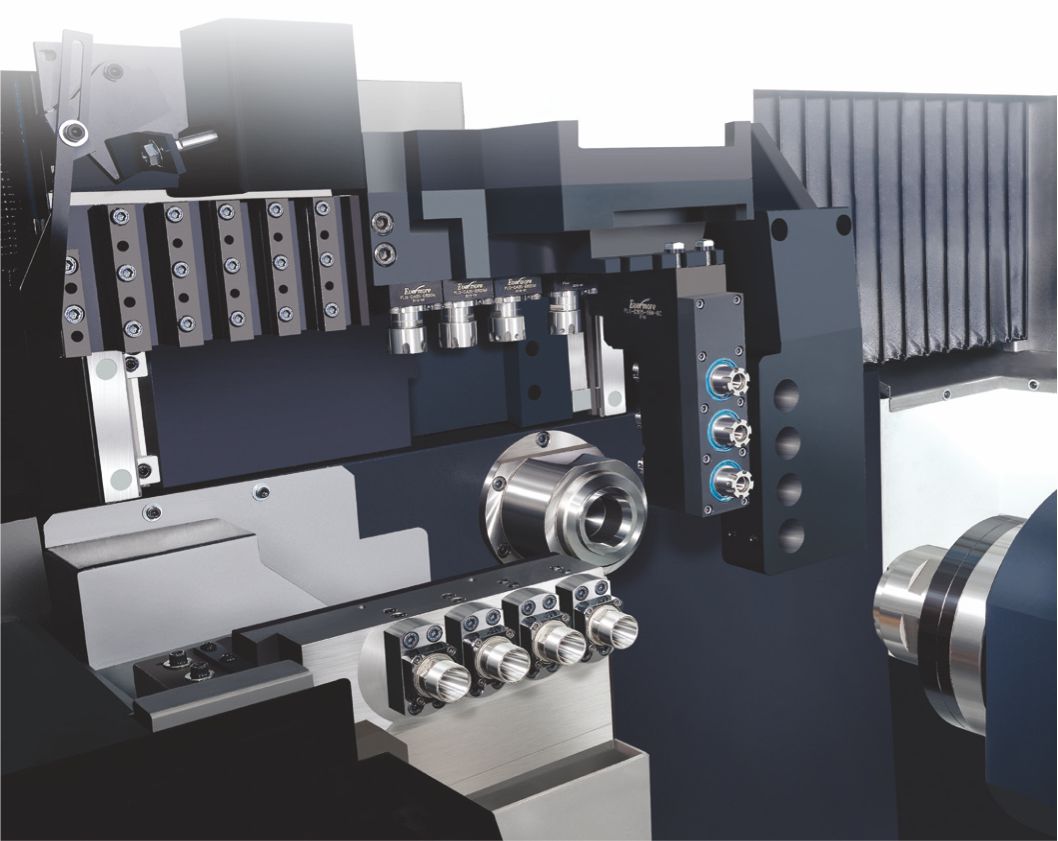

A: 6 pcs cross working driven tool holder
B: 4 pcs I.D. stationary tool holder
C: 3 pcs front working driven tool holder
D: 3 pcs back working driven tool holder
E: 4 pcs back I.D. stationary tool holder
F: 4 pcs back I.D. stationary / working driven tool holder
G: 6 pcs O.D. turning tool holder (42Type with5 pcs O.D. turning tool)

Standard Accessories

Controller: Mitsubishi
Main spindle
Back spindle
Work light
Coolant system
Part off detective sensor
Fixed bushing (Except 32B II / 32CSB II / 42B II / 42 CSB II)
Live bushing
Part catcher
6 pcs O.D. turning tool holder(42 Type with5 pcs O.D. turning tool)
4 pcs I.D. stationary tool holder
6 pcs cross working driven tool holder
3 pcs front working driven tool holder
4 pcs back I.D. stationary tool holder
3 pcs back working driven tool holder
4 pcs back I.D. stationary / working driven tool holder

Optional Accessories

Controller: Fanuc
CS axis
Rough material bushing(without guide bush)
Chip conveyor + bucket

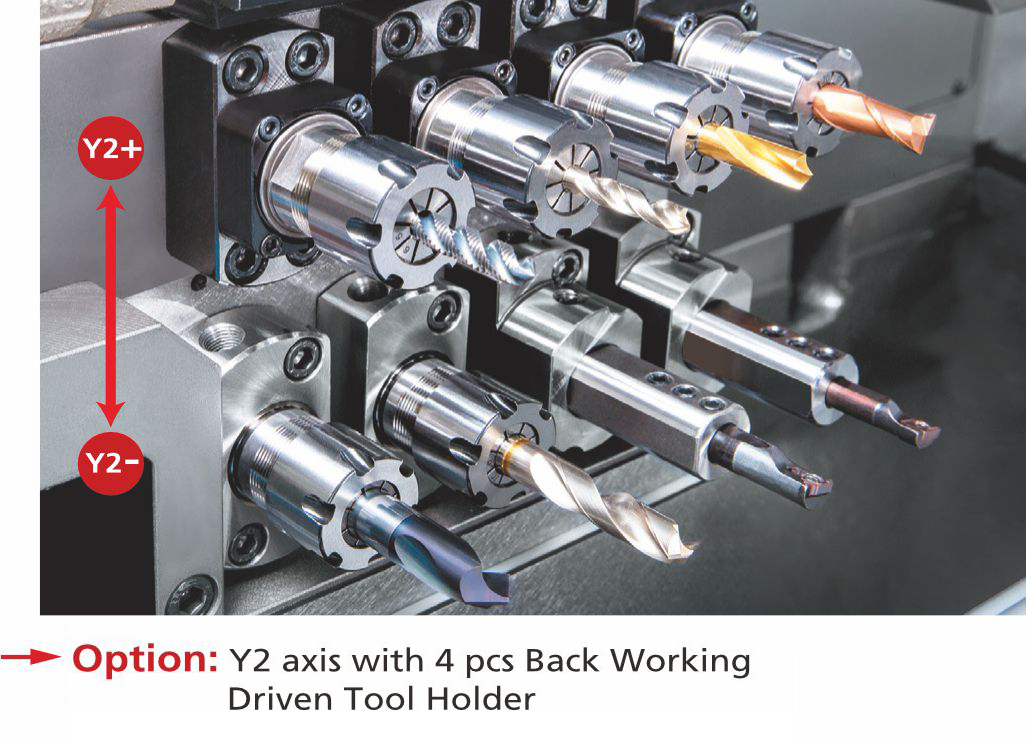

Y2 Axis

Specification

Items	Diamond 20B II	Diamond 20CSB II	Diamond 32B II	Diamond 32CSB II	Diamond 42B II	Diamond 42CSB II
Working Range
Max. Machining Dia.	Ø20 mm	Ø20 mm	Ø32 mm	Ø32 mm	Ø42 mm	Ø42 mm
Max. Machining Length Per Chucking	240 mm	240 mm	240 mm	240 mm	240 mm	240 mm
Max. Drilling Dia.aMax. Drilling Dia. (Main / Sub Spindle)	Ø12 mm	Ø12 mm	Ø15 mm	Ø15 mm	Ø15 mm	Ø15 mm
Max.Tapping Dia. (Main / Sub Spindle)	M10	M10	M12	M12	M12	M12
O.D. Tooling
Number of Tools	6	6	6	6	5	5
Dimension	□12 × 12 × 120	□12 × 12 × 120	□16 ×16 ×120	□16 ×16 ×120	□16 ×16 ×120	□16 ×16 ×120
I.D. Tooling
Number of Tools	4	4	4	4	4	4
Dimension	10mm (ER16)	10mm (ER16)	13 mm (ER20)	13 mm (ER20)	13 mm (ER20)	13 mm (ER20)
Cross Working Driven Tooling
Number of Tools	-	6	-	6	-	6
Dimension	-	10 mm (ER16)	-	13 mm (ER20)	-	13 mm (ER20)
Cross Spindle Speed	-	200-6000 r.p.m.	-	200-6000 r.p.m.	-	200-6000 r.p.m.
Front Working Driven Tooling
Number of Tools	-	3	-	3	-	3
Dimension	-	10 mm (ER16)	-	13 mm (ER20)	-	13 mm (ER20)
Spindle Speed	-	200-6000 r.p.m.	-	200-6000 r.p.m.	-	200-6000 r.p.m.
Back I.D. Tooling
Number of Tools	4+4	4+4	4+4	4+4	4+4	4+4
Dimension	10 mm (ER16)	10 mm (ER16)	13 mm (ER20)	13 mm (ER20)	13 mm (ER20)	13 mm (ER20)
Back Working Driven Tooling
Number of Tools	-	3	-	3	-	3
Dimension	-	7 mm (ER11)	-	10 mm (ER16)	-	10 mm (ER16)
Number of Tools	-	4	-	4	-	4
Dimension	-	10 mm (ER16)	-	13 mm (ER20)	-	13 mm (ER20)
Spindle Speed	-	3000 r.p.m.	-	3000 r.p.m.	-	3000 r.p.m.
Spindle
Spindle Hole Dia.	Ø22 mm	Ø22 mm	Ø35 mm	Ø35 mm	Ø45 mm	Ø45 mm
Spindle Speed	200-8000 r.p.m.	200-8000 r.p.m.	200- 7000 r.p.m	200- 7000 r.p.m	200-5000 r.p.m.	200-5000 r.p.m.
Main Spindle Indexing Angle	C axis	C axis	C axis	C axis	C axis	C axis
Back Spindle
Back Spindle Hole Dia.	Ø22 mm	Ø22 mm	Ø35 mm	Ø35 mm	Ø45 mm	Ø45 mm
Back Spindle Speed	200-8000 r.p.m.	200-8000 r.p.m.	200- 7000 r.p.m.	200- 7000 r.p.m.	200-5000 r.p.m.	200-5000 r.p.m.
Max. length for front ejection	60 mm	60 mm	60 mm	60 mm	80 mm	80 mm
Sub Spindle Indexing Angle	C axis	C axis	C axis	C axis	C axis	C axis
Rapid Traverse
X1, Y1, Z1, X2, Z2	30 m/min	30 m/min	30 m/min	30 m/min	30 m/min	30 m/min
Motors
Spindle Motor	3.7 kW	3.7 kW	5.5 kW	5.5 kW	7.5 kW	7.5 kW
Back Spindle Motor	3.7 kW	3.7 kW	5.5 kW	5.5 kW	5.5 kW	5.5 kW
X1, Y1 ,Z1, X2, Z2 Axes Motor	1 kW	1 kW	1 kW	1 kW	1 kW	1 kW
Y2 Axis Motor (Option)	1 kW	1 kW	1 kW	1 kW	1 kW	1 kW
Coolant Pump Motor	1 HP x 2	1 HP x 2	1 HP x 2	1 HP x 2	1 HP x 2	1 HP x 2
Lubrication Motor	4 W x 2	4 W x 2	4 W x 2	4 W x 2	4 W x 2	4 W x 2
Driven Tools Motor-fixed Arm	-	2.2 kW	-	2.2 kW	-	2.2 kW
Driven Tools Motor-back Replaced Toolholder Set	-	1.5 kW	-	1.5 kW	-	1.5 kW
(Option Y2 Axis)	-	2.2 kW	-	2.2 kW	-	2.2 kW
Machine Dimensions
Center Height	1050 mm	1050 mm	1050 mm	1050 mm	1050 mm	1050 mm
Weight	3140 kg	3170 kg	3390 kg	3420 kg	3710 kg	3740 kg
Optional Y2 Axis	-	3550 kg	-	3800 kg	-	4120 kg
Machine Dimension	2500 × 1280 × 1780 mm	2500 × 1280 × 1780 mm	2500 × 1280 × 1780 mm	2500 × 1280 × 1780 mm	2500 × 1280 × 1780 mm	2500 × 1280 × 1780 mm
Air Pressure
Air Pressure	5kg/cm	5kg/cm	5kg/cm	5 kg/cm	5 kg/cm	5 kg/cm
Air Supply	10 L/min	10 L/min	10 L/min	10 L/min	10 L/min	10 L/min

* We reserve the rights to change the design without any prior notification.
