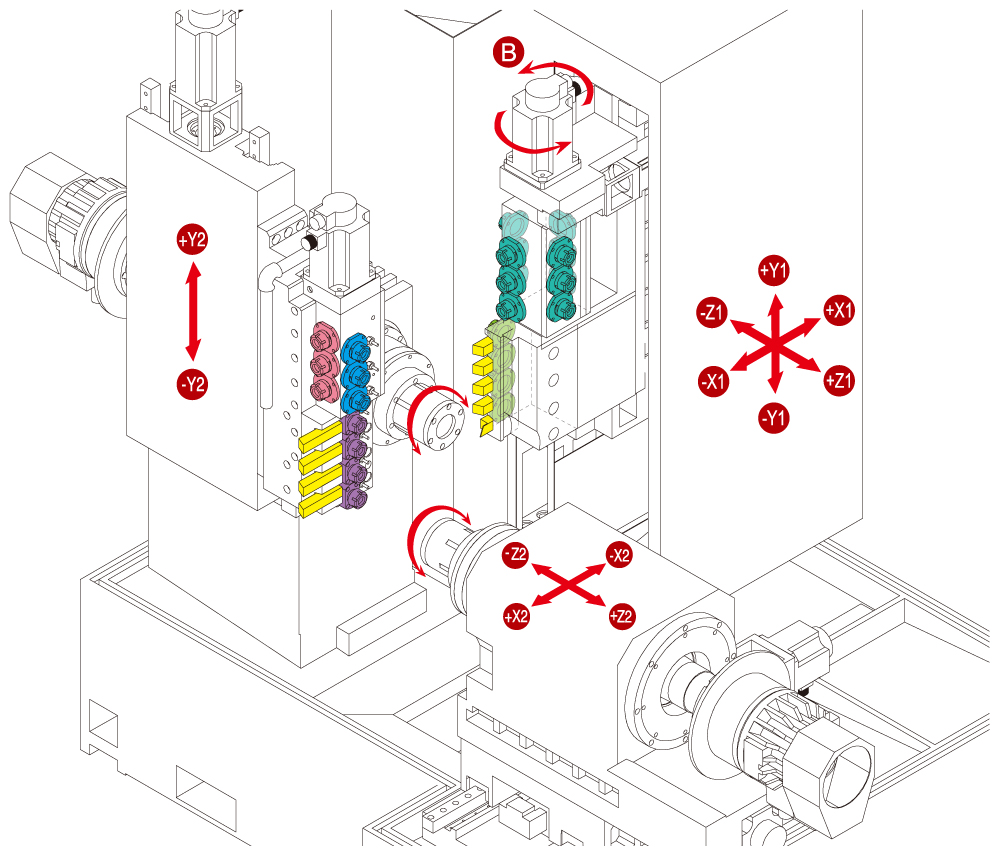

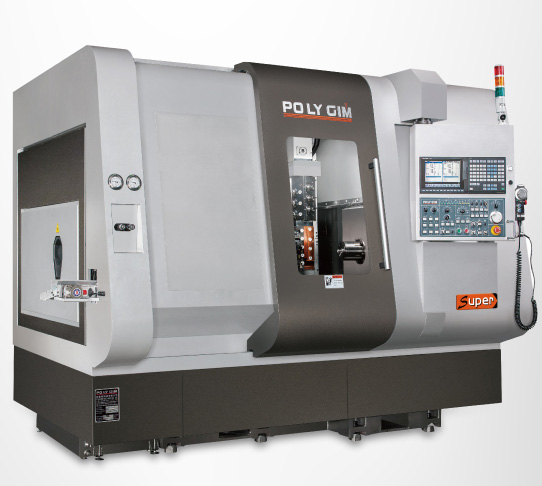

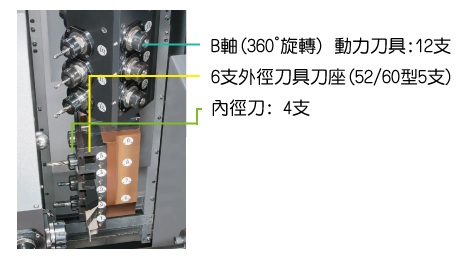

Twin Y-axes design.B-axis can be rotated 360˚ to perform any degree of drilling, tapping and milling operations.B-axis rotation is driven by a servo motor.Through hole max. diameter of main and sub-spindle:Ø65 mm.Both main and sub-spindle have Cs-axes function for performing contour machining.All moving axes are mounted with heavy duty, roller type linear motion guides.Fixed type spindle structure.The machine base is manufactured from high quality cast iron, tempered and stress relieved to eliminate structural deformation problems.
| Items | Super CSL 42 System1 | Super CSL 42 System2 | Super CSL 52 System1 | Super CSL 52 System2 | Super CSL 60 System1 | Super CSL 60 System2 |
|---|---|---|---|---|---|---|
| Working Range | ||||||
| Max. Machining Dia. | Ø42mm | Ø42mm | Ø52mm | Ø52mm | Ø60mm | Ø60mm |
| Max. Machining Length | part diameter x 3 | part diameter x 3 | part diameter x 3 | |||
| Max. Drilling Capacity | Ø30mm | Ø30mm | Ø30mm | Ø30mm | Ø30mm | Ø30mm |
| Toolong System | ||||||
| O.D. Turning Tool | 6 | 4 | 5 | 4 | 5 | 4 |
| O.D. Turning Tool Dimension | □20x20x100 | □20x20x100 | □25X25X100 | □25X25X100 | □25X25X100 | □25X25X100 |
| I.D. Tool | 4 | 4 | 4 | 4 | 4 | 4 |
| I.D. Tool Dimension | Ø25mm | Ø25mm | Ø25mm | Ø25mm | Ø25mm | Ø25mm |
| Cross Tool (power – driven tool) | 3 | 3 | 3 | |||
| Cross Tool Dimension | 16mm (ER25) | 16mm (ER25) | 16mm (ER25) | |||
| Cross Tool Speed | 200~6000rpm | 200~6000rpm | 200~6000rpm | |||
| Off-center driven Tool | 3 | 3 | 3 | |||
| Off-center driven Tool Dimension | 16mm (ER25) | 16mm (ER25) | 16mm (ER25) | |||
| Off-center driven Tool Speed | 200~6000rpm | 200~6000rpm | 200~6000rpm | |||
| 360° Automatic Rotary Driven Tool | 12 | 12 | 12 | |||
| 360° Automatic Rotary Driven Tool Dimension | 16mm (ER25) | 16mm (ER25) | 16mm (ER25) | |||
| 360° Automatic Rotary Driven Tool Speed | 200~5000rpm | 200~5000rpm | 200~5000rpm | |||
| Spindle | ||||||
| Spindle Hole Dia. | Ø46mm | Ø60mm | Ø65mm | |||
| Spindle speed | 100~6000rpm | 100~4000rpm | 100~3000rpm | |||
| Sub-spindle | ||||||
| Sub-spindle Hole Dia. | Ø46mm | Ø60mm | Ø65mm | |||
| Sub-spindle Speed | 100~6000rpm | 100~4000rpm | 100~3000rpm | |||
| Sub-spindle Max. Drilling Dia. | Ø30mm | Ø30mm | Ø30mm | |||
| X1, Y1, Z1 axes | 20m/min | 20m/min | 20m/min | |||
| X2, Y2, Z2 axes | 20m/min | 20m/min | 20m/min | |||
| Motors | ||||||
| Main Spindle | 7.5/11 kW | 11/15 kW | 11/15 kW | |||
| Sub-spindle | 7.5/11 kW | 11/15 kW | 11/15 kW | |||
| Y1, Y2 axes | 2.2 kW | 2.2 kW | 2.2 kW | 2.2 kW | 2.2 kW | 2.2 kW |
| X1, X2, Z1, Z2 axes | 1.5 kW | 1.5 kW | 1.5 kW | 1.5 kW | 1.5 kW | 1.5 kW |
| B axes | 1 kW | 1 kW | 1 kW | |||
| Rotary Tools | 4 kW | 4 kW | 4 kW | 4 kW | 4 kW | 4 kW |
| Coolant Pump | 1 HP | 1 HP | 1 HP | 1 HP | 1 HP | 1 HP |
| Lubrication | 25w | 25w | 25w | 25w | 25w | 25w |
| Machine Dimensions | ||||||
| Center Height | 1125 mm | 1125 mm | 1125 mm | 1125 mm | 1125 mm | 1125 mm |
| Weight | 8300 kgs | 8300 kgs | 8400 kgs | 8400 kgs | 8500 kgs | 8500 kgs |
| Dimension | 2900x2330x2270 mm | 2900x2330x2270 mm | 2900x2330x2270 mm | 2900x2330x2270 mm | 2900x2330x2270 mm | 2900x2330x2270 mm |
| Dimension (with chip conveyor) | 3850x2330x2270 mm | 3850x2330x2270 mm | 3850x2330x2270 mm | 3850x2330x2270 mm | 3850x2330x2270 mm | 3850x2330x2270 mm |
| Air | ||||||
| Air Pressure | 5kg/cm | 5kg/cm | 5kg/cm | 5kg/cm | 5kg/cm | 5kg/cm |
| Air Supply | 10L/min | 10L/min | 10L/min | 10L/min | 10L/min | 10L/min |
