Introduction

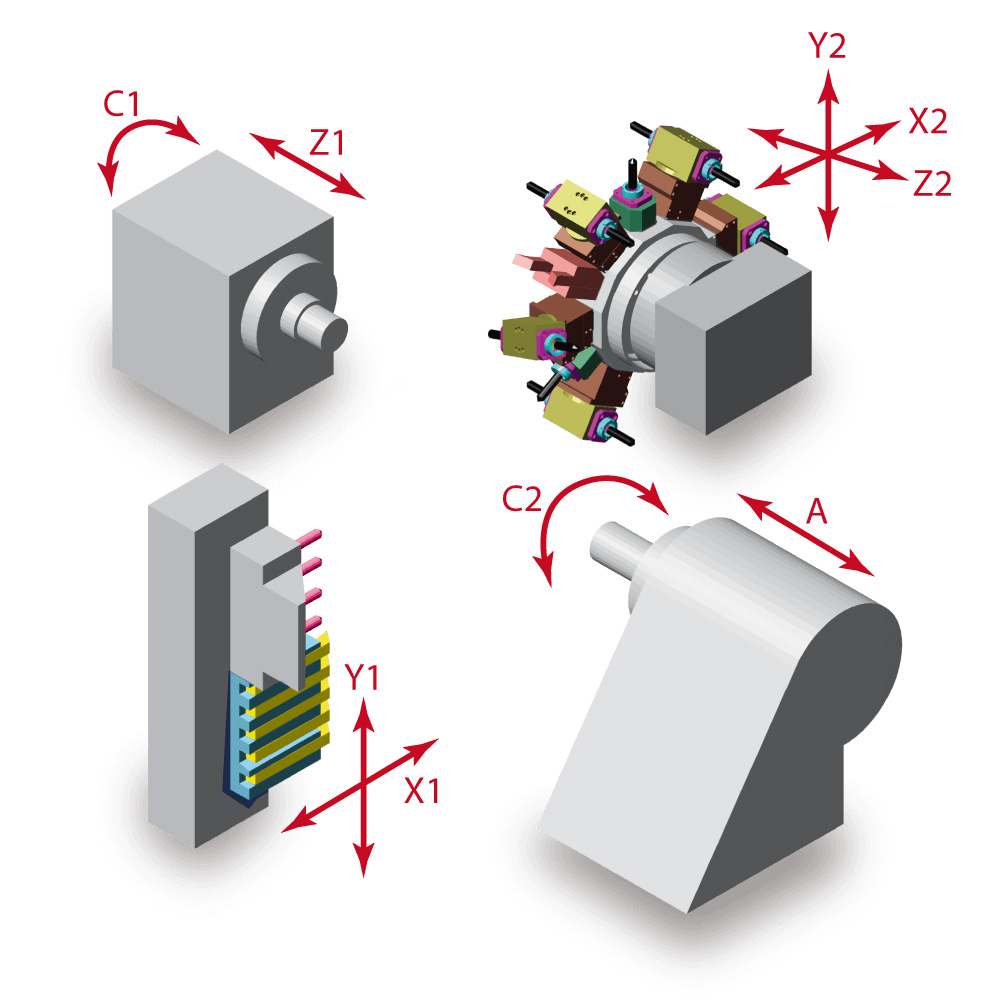

Diamond CSL 42-2YII is upgraded with MITSUBISHI 830 controller which possessed control axis superimposition function. It offers up to 10 axes complex manufacturing capability and it can simultaneously to process at 3 channels.
Product
Contact us
E-mail：caoyupin88@gmail.com
Phone：
TEL：13717406410
Address：Room 108, No.1, Industry 3rd Road, Hengjiangxia, Changping Town, Dongguan City, Guangdong Province, Polygim
Swiss Type CNC Lathe

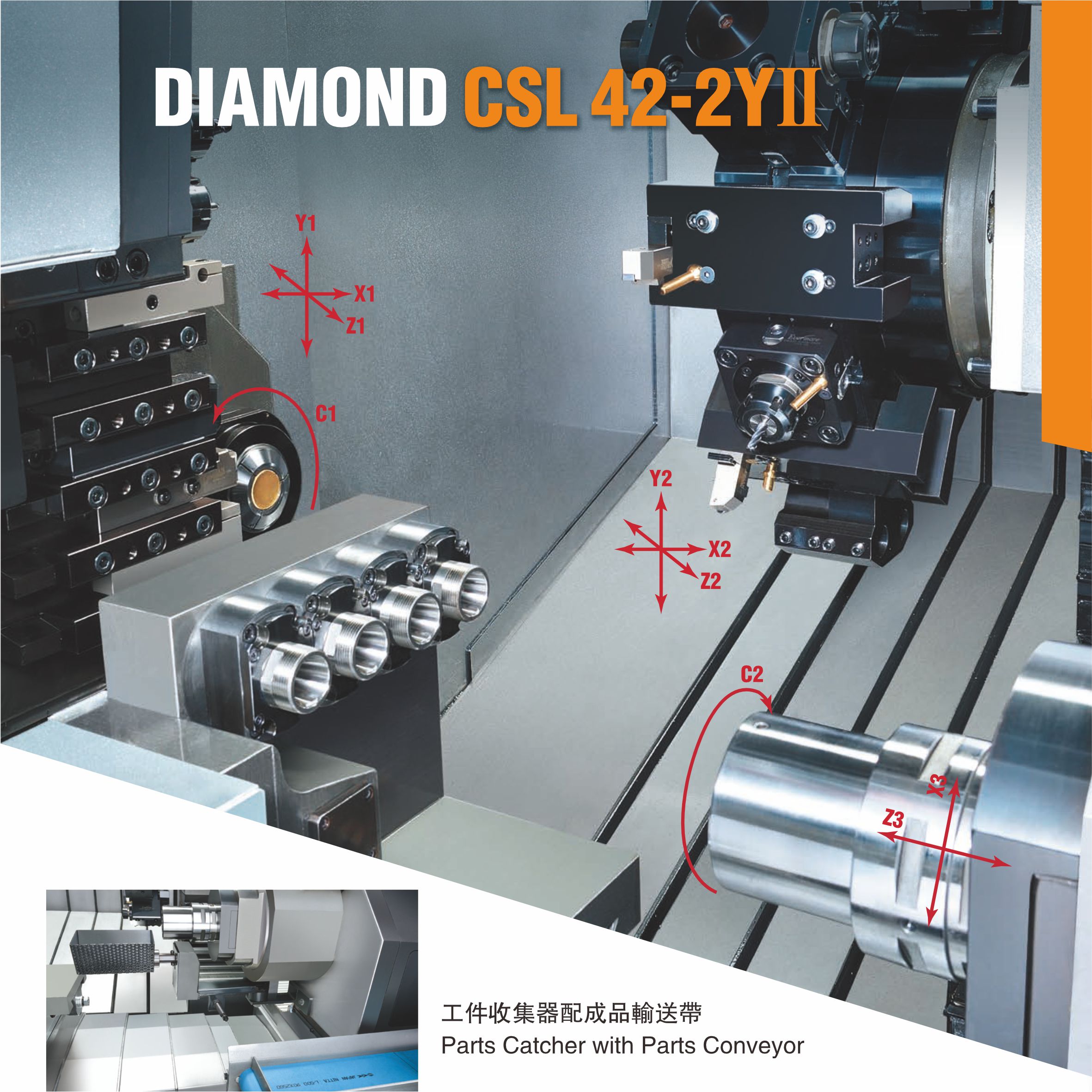

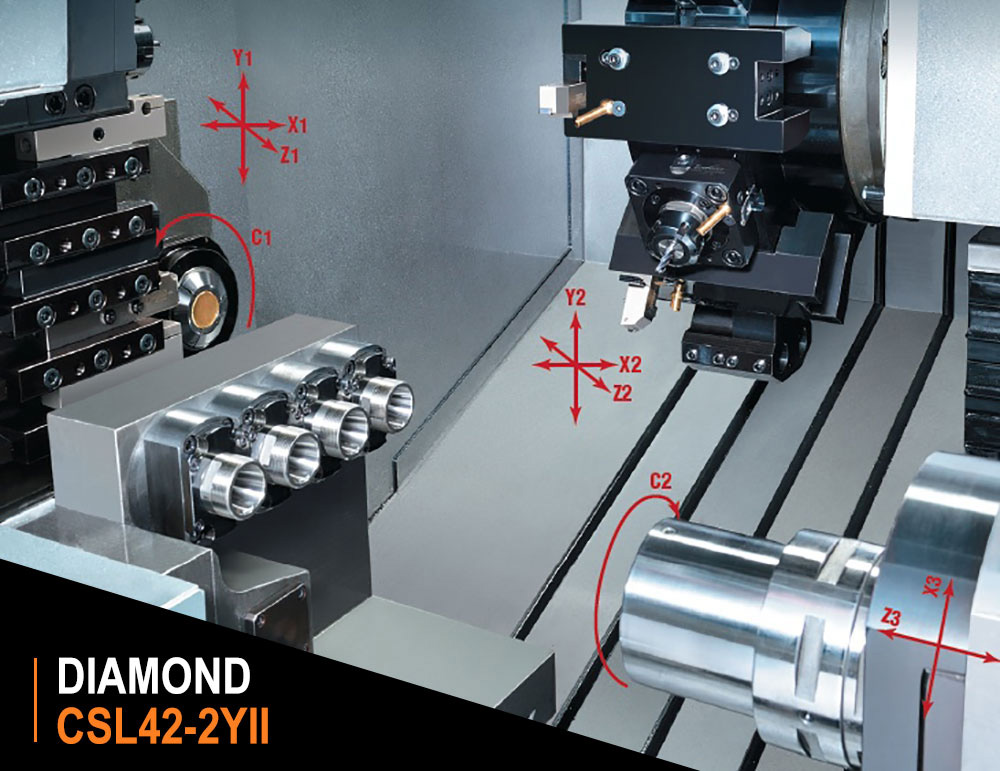

Diamond CSL 42-2Y II
说明书文件：/uploads/soft/20260404/1-260404223643150.pdf
Main and Sub-Spindle are up to 42mm with12 stations power turret. Both built-in spindle are with CS axis indexing. This helps to obtain spindle rotation high accuracy and better surface finish during cutting operation.
Using Live Bushing with Guide Bush
Using Rough Material Bushing without Guide Bush

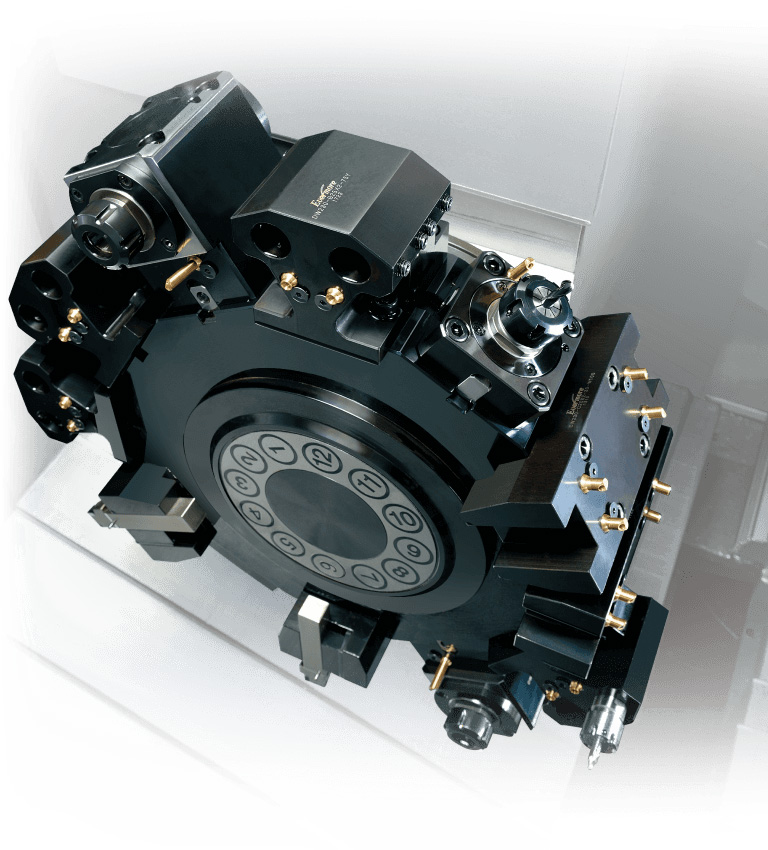

12 Stations Power Turret Can Do Double-side Processing
4 pcs Cross Working Driven Tool Holder
5 pcs O.D. Turning Tool Holder
4 pcs Back Working Driven Tool Holder
Standard Accessories
- Main spindle
- Sub-spindle
- CS Axis
- Working Light
- Coolant System
- Part off Detective Sensor
- Live Bushing
- Chip Conveyer
- Chip Bucket
- Part Catcher
- 5 pcs O.D. Turning Tool Holder
- 4 pcs Cross Working Driven Tool Holder
- 4 pcs Double Side Turning Holder (Turret)
- 4 pcs Double Boring Bar Holder (Turret)
- 2 pcs Axial Drilling and Milling Head (Turret)
- 2 pcs Radial Drilling and Milling Double Head (Turret)
- 4 pcs Back Working DrivenTool Holder
- Rough Material Bushing(Max. Machining = Bar Diameter x 3)
Optional Accessories
- Double Side Turning Holder (Turret)
- Double Boring Bar Holder (Turret)
- Axial Drilling And Milling Head (Turret)
- Radial Drilling And Milling Double Head (Turret)
Specification
| Items | Y1 (System 1) | Y2 (System 2) | (System 3) |
|---|---|---|---|
| Working Range | |||
| Max. Turning Dia. | Ø42 mm | Ø42 mm | |
| Max. Machining Length | 280 mm | ||
| Max. Drilling Capacity | Ø30 mm | Ø30 mm | |
| Max. Tapping Capacity | M16 | M16 | |
| Tooling System | |||
| O.D. Turning Tool | 5 | ||
| O.D. Turning Tool Dimension | □20x20x120 | ||
| Cross Tool (power – driven tool) | 4 | ||
| Cross Tool Dimension | 16 mm (ER25) | ||
| Cross Tool Speed | 200~6000 rpm | ||
| Back I.D. Tool | 4 | ||
| Back I.D. Tool Dimension | Ø25 mm | ||
| Back Working Driven Tool | 4 | ||
| Back Working Driven Tool Dimension | 16 mm (ER25) | ||
| Back Working Driven Tool Speed | 200~6000 r.p.m. | ||
| Power Turret | |||
| Power - driven Tool / Station | 12 | ||
| O.D. Tool Dimension | □20 x 20 | ||
| I.D. Tool Dimension | Ø25 mm | ||
| Max. O.D. Turning Tool / Station | 6 | ||
| Max. I.D. bore Tool / Station | 6 | ||
| Power – driven Tool Dimension | 16 mm (ER25) | ||
| Power – driven Tool Speed | 200~4000 rpm | ||
| Max. Radial Mill / Drill Tool / Station | 12 | ||
| Max. Axial Mill / Drill Tool / Station | 12 | ||
| Spindle | |||
| Spindle Hole Dia. | Ø42 mm | ||
| Spindle Speed | 200~6000 rpm | ||
| Sub-spindle | |||
| Sub-spindle Hole Dia. | Ø42mm | ||
| Sub-spindle Speed | 200~6000rpm | ||
| Max. Length for Front Ejection | 120 mm | ||
| Sub-spindle Max. Drilling Dia. | Ø30 mm | ||
| Sub-spindle Max. Tapping Dia. | M16 | ||
| Rapid Traverse Speed | |||
| X1, Z1, Y1, X2, Z2, Y2, X3, Z3 Axes | 30 m/min | 30m/min | 30 m/min |
| Travel | |||
| X1 axis | 45 mm | ||
| Z1 axis | 300 mm | ||
| Y1 axis | 360 mm | ||
| X2 axis | 140 mm | ||
| Z2 axis | 470 mm | ||
| Y2 axis | 170 mm | ||
| X3 Axis | 245 mm | ||
| Z3 Axis | 450 mm | ||
| Motors | |||
| Main / Sub-Spindle | 7.5 kW | 7.5 kW | |
| Y1, Y2 axes | 1.5kW | 2.2kW | |
| X1, Z1, X2, Z2, X3, Z3 Axes | 1.0 kW | 1.0 kW | 1.0 kW |
| Rotary Tools | 2.2 kW | 2.2 kW | 2.2 kW |
| Coolant Pump | 1 HP | 1 HP | |
| Lubrication | 25 W | 25 W | |
| Machine Dimensions | |||
| Center Height | 990 mm | ||
| Weight | 6480 kgs | ||
| Dimension | 3600 x 2650 x 2130 mm | ||
| Air | |||
| Air Pressure | 5kg/cm | ||
| Air Supply | 10L/min | ||
* We reserve the rights to change the design without any prior notification.
